Last Uploaded: January, 2010

The Shimizu Institute of Technology, an urban research center

Architectural DataFeaturesCasbee ScoreTechnical Details建物リストに戻る

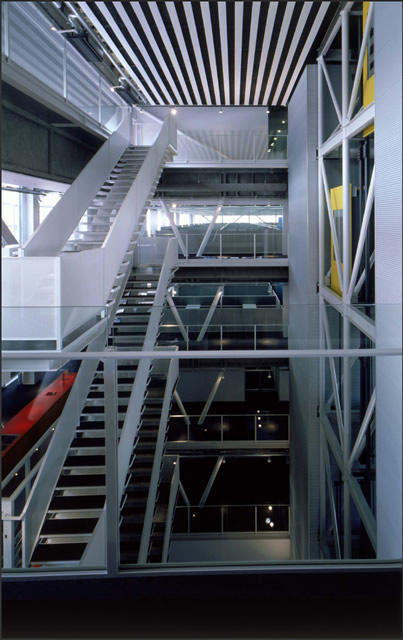

Open ceiling and work space
Open ceiling and work space Functional diagram of building

Special Features

Q-1 Indoor Environment
  • Personal air conditioning
  • Floor-supply displacement air-conditioning system
  • Gradation blind
  • Lighting control by brightness sensors
  • WEB monitoring and control system
  • Online air conditioning system verification tool
  • Indoor airborne chemical substance monitoring
  • Electromagnetic shield
Q-2 Quality of Service
  • OA floor: 150 mmH
  • Power supply capacity: Lighting and outlet: 62 VA/m2
  • Compliant with the Heart Building Law
  • Floor height : 4.0m
  • Relaxation space in void space
  • Seismic Isolation (Column-Top)
  • Skeleton infill (equipment storage wall)
  • Heat source units are placed outdoors (on the ground and on the roof).
  • Structural health monitoring
Q-3 Outdoor Environment on Site
  • Roof biotope
  • Ground biotope
  • Insects and birds monitoring system
  • Wall greening
  • Greenery network
LR-1 Energy
  • ERR (Energy Reduction Rate) value: 38%
  • Primary energy reduction: 43%
  • LCCO2 reduction: 35%
  • Outside air cooling
  • Outside air amount and lighting control system based on PHS (Personal Handyphone System) position information
  • IP-integrated BEMS (Building Energy Management System) using WEB monitoring and control
LR-2 Resources and Materials
  • Water saving measures, such as ultra water-saving toilets, toilet flushing sound simulator, and automatic faucets
  • Recycled aggregate is used.
  • All refrigerants: ODP (Ozone Depletion Potential) = 0
LR-3 Off-site Environment
  • All heat source units are electrically driven.
  • Sound insulation walls are used to prevent noise from the heat source units.
  • Low-noise units are used

Other Features

  • Dynamic ice storage
  • Ice water transportation system
  • The building thermal mass storage system
  • Hybrid ventilation system
  • Fire-phase information management system
  • Water curtain fire compartment system
  • BEMS analysis system
  • Activities to raise awareness of the environment through science camps using biotopes
Previous BuildingPrevious Building Next BuildingNext Building
These cases are described based on assessment results obtained using CASBEE.
CASBEE is a method for rating the environmental performance of buildings using Building Environmental Efficiency (BEE) as an indicator, which is based on the results of separate scores obtained for Q-1~Q-3 (Quality) and LR-1~LR-3 (Load Reduction).
